TZV2

Folding bath screen with a swivel wall system

Take advantage of our offer to snap up this technically sophisticated bath screen. If you no longer want to get rid of frequent mopping water and dirt, yet continue to use the bath for showering, it's time to tune your bathroom to perfection.

- 6 mm Transparent ESG glass with RothETC
- wall profile in Brillant color
- both side opening
- lifting mechanism

Types

Type	Order number	Orientation	Profile	Installation width (y)	Height (h)	Glass	Entrance width (c)	Delivery
TZVL2 /1000	742-100000L-00-02	Left	Brillant	990–1005	1400 mm	Transparent	C1: 420 / C2: 520	O	---
TZVP2 /1000	742-100000P-00-02	Right	Brillant	990–1005	1400 mm	Transparent	C1: 420 / C2: 520	O	---
TZVL2 /1100	742-110000L-00-02	Left	Brillant	1090–1105	1400 mm	Transparent	C1: 470 / C2: 570	O	---
TZVP2 /1100	742-110000P-00-02	Right	Brillant	1090–1105	1400 mm	Transparent	C1: 470 / C2: 570	O	---
TZVL2 /1200	742-120000L-00-02	Left	Brillant	1190–1205	1400 mm	Transparent	C1: 520 / C2: 620	O	---
TZVP2 /1200	742-120000P-00-02	Right	Brillant	1190–1205	1400 mm	Transparent	C1: 520 / C2: 620	O	---

* H – height including supporting elements

DELIVERY METHOD:
S  - items in STOCK - delivery in the earliest possible date
O  - items to ORDER - delivery time should not exceed 14 working days
Z  - CUSTOMIZED items - delivery time should not exceed 30 working days

Download
Technical specifications TZV2pdf420.71 KB
3D modelszip10.17 MB
Installation instructions TZV2pdf3.77 MB

Advantages of the TZV2 bath screen

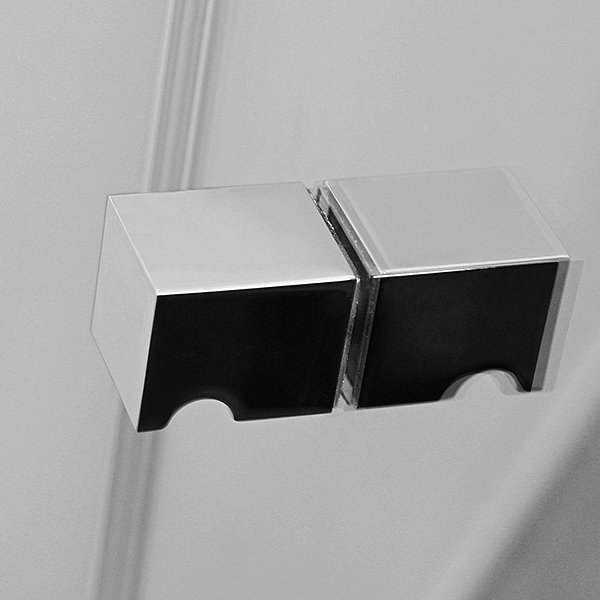

Aluminum wall profile in an elegant Brillant finish and hinges and a handle in a chrome finish.
The modern Easy Clean hinges are recessed to the glass level, which not only makes maintenance easier, but also looks great.
The screen folds into the space of the bathtub, and thanks to that it can be used even in the smallest bathroom.

Select the left (TZVL2) or right (TZVP2) variant.

The TZV2 bath screen made of safety glass is provided with a special RothETC surface treatment. This latest nanotechnology prevents the deposit of limescale, grease and dirt on the glass surface, making maintenance very easy. Glass has hydrophobic properties, so it repels water. The dripping drops of water pack dirt on top of each other and at the same time prevent the limescale.

* H – height including supporting elements
