TZNL1, TZNP1

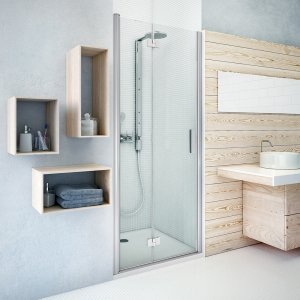

Shower door for a niche with both side foldable doors

Folding shower door TZNL1/TZNP1 with swivel system are intended for installation to a niche. It is practical folding door that provide wide input into the shower. Easy Clean integrated hinges are recessed to level with the glass, which looks very elegant and greatly simplifying maintenance of the door for a niche. In the production of this shower door we thought about even the smallest details, so we feel free to provide extended warranty of 5 years.

TZNL1, TZNP1

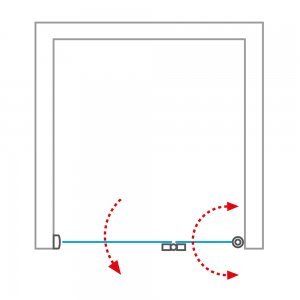

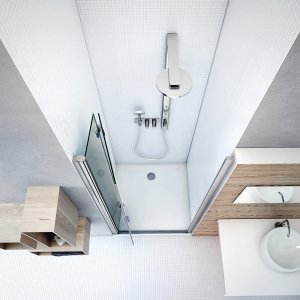

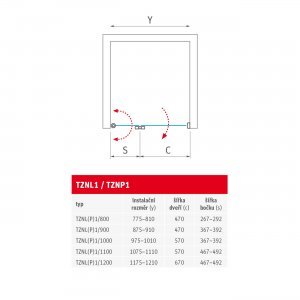

Profile and new threshold sealMagnetic shower door seal and wall profileEasy Install hinges in chrome finishWaterproof silicone sealHigh quality handle made of brushed aluminumAluminum profile BrillantTZNL shower door - openTZNP1 - drawing
  • Types
    TypeOrder numberOrientationProfileHeight (h)Side part width (s)GlassInstallation width (y)Delivery
    TZNL1/800739-800000L-00-02 Left Brillant 2012 mm 267–292 Transparent 775–810 O
    ---
    TZNL1/900739-900000L-00-02 Left Brillant 2012 mm 367–392 Transparent 875–910 O
    ---
    TZNL1/1000739-100000L-00-02 Left Brillant 2012 mm 367–392 Transparent 975–1010 O
    ---
    TZNL1/1100739-110000L-00-02 Left Brillant 2012 mm 467–492 Transparent 1075–1110 O
    ---
    TZNL1/1200739-120000L-00-02 Left Brillant 2012 mm 467–492 Transparent 1175–1210 O
    ---
    TZNP1/800739-800000P-00-02 Right Brillant 2012 mm 267–292 Transparent 775–810 O
    ---
    TZNP1/900739-900000P-00-02 Right Brillant 2012 mm 367–392 Transparent 875–910 O
    ---
    TZNP1/1000739-100000P-00-02 Right Brillant 2012 mm 367–392 Transparent 975–1010 O
    ---
    TZNP1/1100739-110000P-00-02 Right Brillant 2012 mm 467–492 Transparent 1075–1110 O
    ---
    TZNP1/1200739-120000P-00-02 Right Brillant 2012 mm 467–492 Transparent 1175–1210 O
    ---
    * H – height including supporting elements
    DELIVERY METHOD:
    S  - items in STOCK - delivery in the earliest possible date
    O  - items to ORDER - delivery time should not exceed 14 working days
    Z  - CUSTOMIZED items - delivery time should not exceed 30 working days
    ATTENTION: Nominal sizes of shower enclosures are designed for INSTALLATION ON THE TRAY and they are always assembled with indentation from the edge of the tray. With INSTALLATION ON THE TILES there is a risk, that the size of shower enclosure will be smaller than measured width of the tiles. It is necessary to follow the size charts specified in “TECHNICAL SPECIFICATION” file, which is available to download on the product pages.
  • Download

    Downloads

Benefits of shower door TZNL1/TZNP1

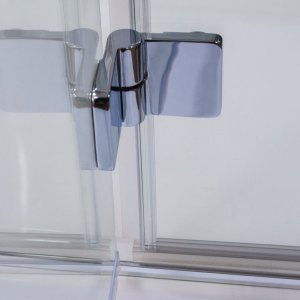

  • Special Easy Clean integrated hinges are recessed to level with the glass and greatly simplifying maintenance of this door.

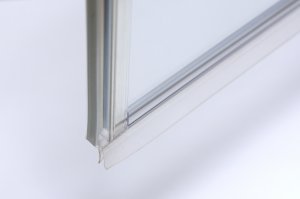

  • Magnetic door sealing ensure that you would not have a flood in the bathroom. We also improved the threshold part sealing.
  • Special EASY INSTALL wall profile for easy installation of fixed glass to the wall and compensation of building inaccuracies

Shower door TZNL1/TZNP1 thanks to 2012 mm height you can install directly on the floor or on the cast marble shower tray. It makes them an ideal candidate for barrier-free solutions. We also offer two versions of aluminum profiles - Silver (Elox), resistant to scratches and surface oxidation, and Brillant, when profile is polished to high gloss.

* H – height including supporting elements

ATTENTION: Nominal sizes of shower enclosures are designed for INSTALLATION ON THE TRAY and they are always assembled with indentation from the edge of the tray. With INSTALLATION ON THE TILES there is a risk, that the size of shower enclosure will be smaller than measured width of the tiles. It is necessary to follow the size charts specified in “TECHNICAL SPECIFICATION” file, which is available to download on the product pages.
