LLR2

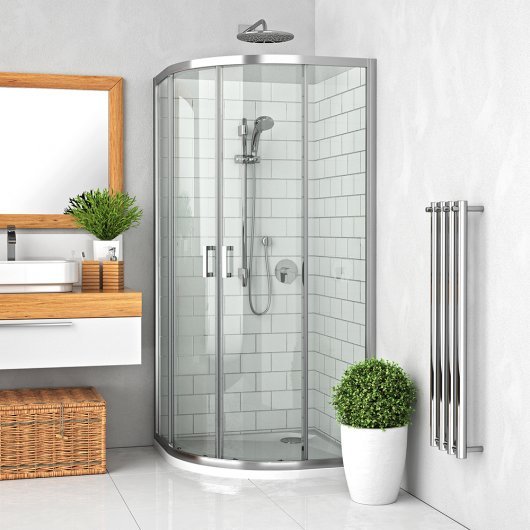

Quadrant shower enclosure with two sliding doors

Brand new semi-frame line practically combines 5 mm door and 4 mm safety glass of fixed parts in the frame. The complete range offers a practical solution for standard models, as well as for large-sized showers that are becoming increasingly popular. Simplicity, durability and excellent price-quality ratio may this series LEGA LINE make a new star of the series production.

Glass protection

Solid handles made of polished stainless steel

Bottom tracks for easy maintenance and sealing flags

Lower travel and magnetic seal between doors

Types

Type	Order number	Glass	Height (h)	Delivery	Profile	Entrance size (c)	Installation width (y)
LLR2/800	555-8000000-04-02	Transparent	1900 mm	S	White	410	776-798	---
LLR2/800	555-8000000-04-11	Grape	1900 mm	S	White	410	776-798	---
LLR2/800	555-8000000-00-02	Transparent	1900 mm	S	Brillant	410	776-798	---
LLR2/800	555-8000000-00-11	Grape	1900 mm	S	Brillant	410	776-798	---
LLR2/900	555-9000000-04-02	Transparent	1900 mm	S	White	560	876-898	---
LLR2/900	555-9000000-04-11	Grape	1900 mm	S	White	560	876-898	---
LLR2/900	555-9000000-00-02	Transparent	1900 mm	S	Brillant	560	876-898	---
LLR2/900	555-9000000-00-11	Grape	1900 mm	S	Brillant	560	876-898	---
LLR2/800 SMONT	555-800000S-04-02	Transparent	1900 mm	S	White	410	776-798	---
LLR2/800 SMONT	555-800000S-04-11	Grape	1900 mm	S	White	410	776-798	---
LLR2/800 SMONT	555-800000S-00-02	Transparent	1900 mm	S	Brillant	410	776-798	---
LLR2/800 SMONT	555-800000S-00-11	Grape	1900 mm	S	Brillant	410	776-798	---
LLR2/900 SMONT	555-900000S-04-02	Transparent	1900 mm	S	White	560	876-898	---
LLR2/900 SMONT	555-900000S-04-11	Grape	1900 mm	S	White	560	876-898	---
LLR2/900 SMONT	555-900000S-00-02	Transparent	1900 mm	S	Brillant	560	876-898	---
LLR2/900 SMONT	555-900000S-00-11	Grape	1900 mm	S	Brillant	560	876-898	---

* H – height including supporting elements

DELIVERY METHOD:
S  - items in STOCK - delivery in the earliest possible date
O  - items to ORDER - delivery time should not exceed 14 working days
Z  - CUSTOMIZED items - delivery time should not exceed 30 working days

ATTENTION: Nominal sizes of shower enclosures are designed for INSTALLATION ON THE TRAY and they are always assembled with indentation from the edge of the tray. With INSTALLATION ON THE TILES there is a risk, that the size of shower enclosure will be smaller than measured width of the tiles. It is necessary to follow the size charts specified in “TECHNICAL SPECIFICATION” file, which is available to download on the product pages.

Download
Technical specifications LLR2pdf157.60 KB
Installation instructions LLR2pdf4.95 MB

* R – standard radius R550

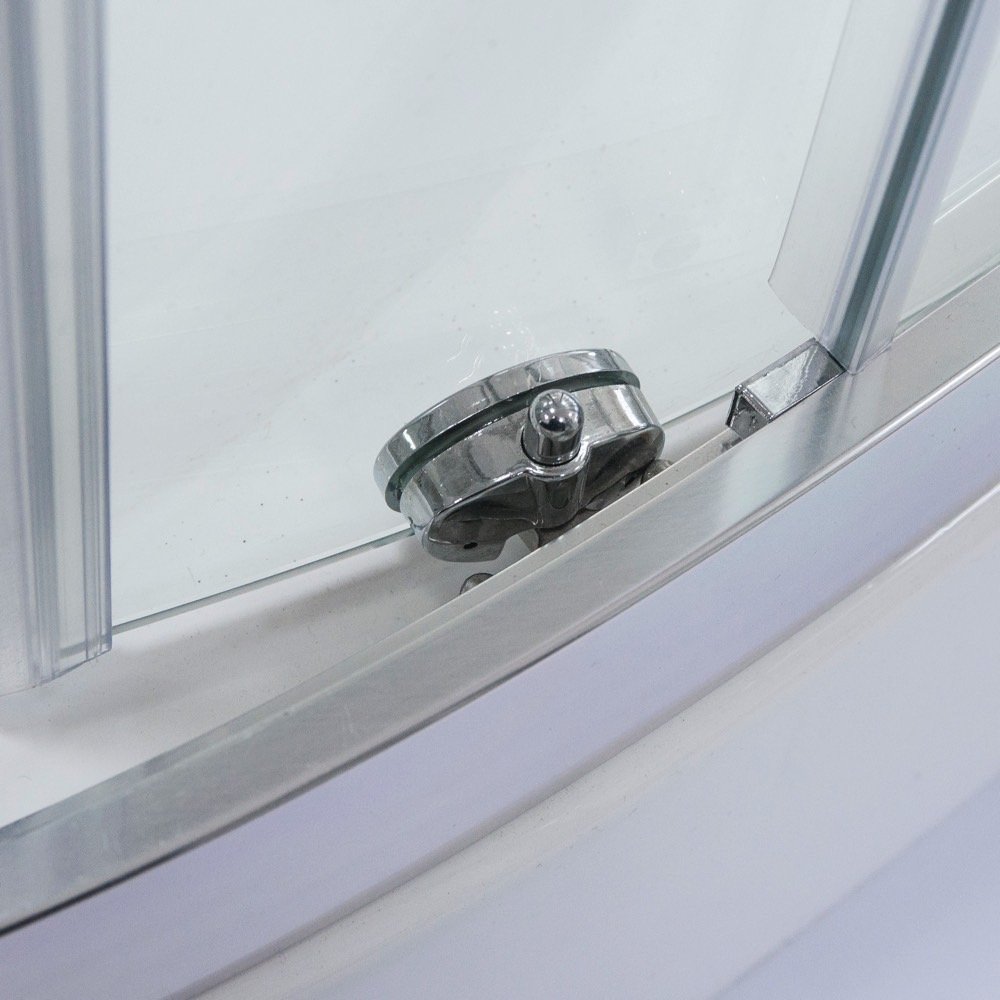

Quadrant shower enclosure of this series LEGA LINE is available in two standard sizes. Durable double top and bottom rollers provide smooth movement of the door, in addition with the tilting system of the bottom for easy maintenance. Massive handle made of polished stainless steel highlights the delicate design of products of this series.
